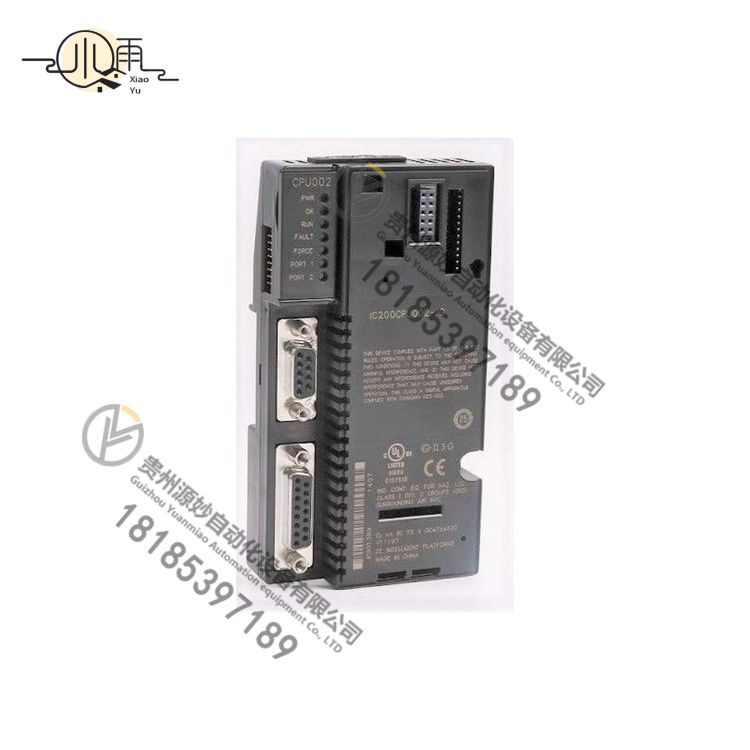

GE IC200CPU002 PLC CPU 模块

GE IC200CPU002 PLC CPU模块是一款由GE（通用电气）制造的工业控制器组件，具有多种特性和功能，广泛应用于工业自动化控制系统中。以下是对该模块的详细解析：

一、基本概述

• 型号：IC200CPU002
• 制造商：GE（通用电气）
• 类型：PLC（可编程逻辑控制器）CPU模块

二、主要特点

1. 高性能处理器：
• IC200CPU002配备了高性能的处理器，能够处理复杂的控制算法和实时控制任务，确保系统的快速响应和运行。
2. 丰富的I/O能力：
• 该模块带有2048个数字输入和输出，支持多种输入/输出（I/O）模块，包括数字输入/输出、模拟输入/输出和专用功能模块等，满足各种输入和输出信号的处理需求。
3. 多种通信接口和协议支持：
• IC200CPU002具有多种通信接口，包括RS-232和RS-485串口，以及以太网等。它支持通信协议如DH+、ControlNet和Ethernet等，使得PLC-5控制器能够与其他设备和系统进行数据交换和通信，实现系统的集成控制。
4. 用户可配置内存：
• 配备了42KB的用户可配置内存，使用非易失性闪存来存储程序和指令，确保数据的安全性和持久性。
5. 编程环境和语言支持：
• 使用罗克韦尔自动化的RSLogix 5编程软件进行程序开发和调试。RSLogix5提供了直观的图形化编程界面和多种编程语言支持，如梯形图（Ladder Diagram）和结构化文本（StructuredText），以满足不同用户的编程需求。
6. 可靠性和扩展性：
• IC200CPU002具有稳定的性能和可靠性，适用于工业环境中的长时间运行。同时，它还具有良好的可扩展性，可以根据需要添加额外的模块和功能，以满足不断变化的系统需求。
7. 兼容性：
• 与罗克韦尔自动化的其他产品兼容，如远程I/O系统和运动控制器等，便于系统的整体集成和协同控制。

三、模块组成

IC200CPU002 CPU模块主要包括控制单元、运算单元和存储单元三个部分，这三部分由CPU内部总线连接起来：

• 控制单元：是整个CPU的指挥控制中心，负责从存储器中取出指令，通过指令译码确定应该进行什么操作，并向相应的部件发出微操作控制信号。
• 运算单元：是运算器的核心，负责执行算术运算和逻辑运算。
• 存储单元：包括CPU片内缓存和寄存器组，用于暂时存放数据。

GE IC200CPU002 PLC CPU module is an industrial controller component manufactured by GE (General Electric) with a variety of features and functions, widely used in industrial automation control systems. The following is a detailed analysis of the module:

1. Basic Overview

Model: IC200CPU002

Manufacturer: GE (General Electric)

Type: PLC (Programmable Logic Controller) CPU Module

2. Main Features

High-performance processor:

IC200CPU002 is equipped with a high-performance processor that can handle complex control algorithms and real-time control tasks to ensure fast response and operation of the system.

Rich I/O Capabilities:

The module comes with 2048 digital inputs and outputs and supports a variety of input/output (I/O) modules, including digital input/output, analog input/output, and special function modules, etc., to meet the processing needs of various input and output signals.

Multiple Communication Interfaces and Protocol Support:

IC200CPU002 has a variety of communication interfaces, including RS-232 and RS-485 serial ports, as well as Ethernet, etc. It supports communication protocols such as DH+, ControlNet and Ethernet, enabling PLC-5 controllers to exchange data and communicate with other devices and systems to achieve integrated control of the system.

User Configurable Memory:

Equipped with 42KB of user configurable memory, it uses non-volatile flash memory to store programs and instructions to ensure data security and persistence.

Programming Environment and Language Support:

Program development and debugging are performed using Rockwell Automation's RSLogix 5 programming software. RSLogix5 provides an intuitive graphical programming interface and multiple programming language support, such as Ladder Diagram and Structured Text, to meet the programming needs of different users.

Reliability and Scalability:

IC200CPU002 has stable performance and reliability, and is suitable for long-term operation in industrial environments. At the same time, it also has good scalability, and additional modules and functions can be added as needed to meet changing system requirements.

Compatibility:

Compatible with other products of Rockwell Automation, such as remote I/O systems and motion controllers, to facilitate overall integration and collaborative control of the system.

3. Module composition

The IC200CPU002 CPU module mainly includes three parts: control unit, operation unit and storage unit. These three parts are connected by the CPU internal bus:

Control unit: It is the command and control center of the entire CPU. It is responsible for taking instructions from the memory, determining what operations should be performed through instruction decoding, and sending micro-operation control signals to the corresponding components.

Operation unit: It is the core of the operator and is responsible for performing arithmetic and logical operations.

Storage unit: It includes CPU on-chip cache and register group, which are used to temporarily store data.
