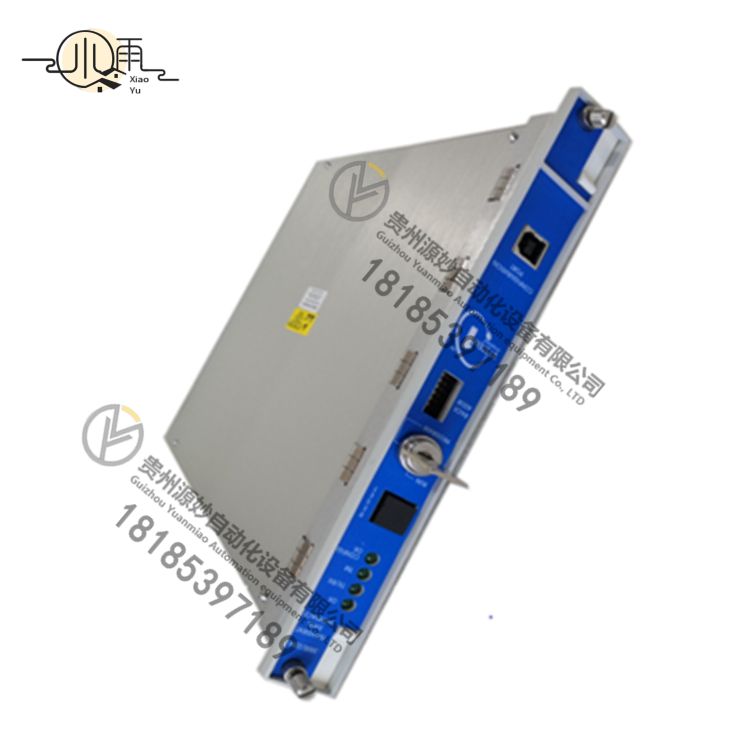

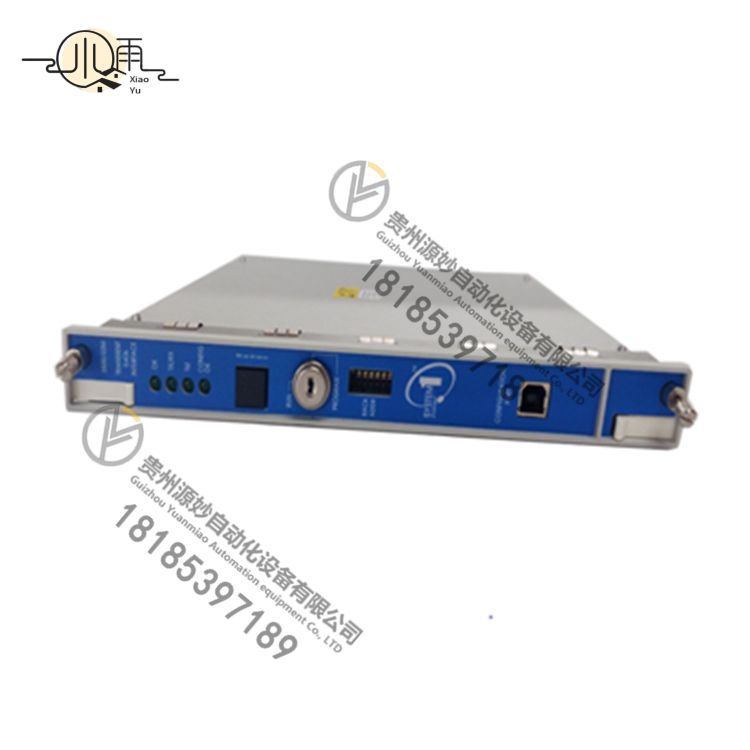

Bently Nevada 3500/22-01-01-00 数据接口模块

Bently Nevada 3500/22-01-01-00 数据接口模块，也称为瞬态数据接口（TDI），是Bently Nevada公司3500监测系统中的一个关键组件。以下是对该模块的详细解析：

一、产品概述

• 型号：3500/22-01-01-00
• 生产商：Bently Nevada（本特利内华达）
• 功能：作为3500监测系统与兼容软件之间的桥梁，实现数据的传输和收集。

二、主要功能与特性

1. 数据收集与传输：
• TDI结合了3500/20机架接口模块（RIM）的功能和通信处理器（如TDXnet）的数据收集能力，能够连续收集稳态和瞬态波形数据。
• 通过以太网链路，将这些数据传输到主机软件，如系统1状态监测和诊断软件以及3500系统配置软件，实现实时数据监测。
2. 静态与动态数据采集：
• TDI具有传统的静态数据收集能力，同时可通过使用可选的通道使能盘来捕获动态和高分辨率瞬态数据。
• 这使得用户可以更全面地了解设备的运行状况，包括在瞬态事件（如启动、停机或负载变化）期间的行为。
3. 系统架构简化：
• TDI在3500机架内集成了通信处理器功能，简化了系统架构并降低了成本。
• 每个3500机架都需要一个TDI或RIM，并且它始终占用机架的1号插槽（靠近电源），确保了数据的可靠传输和系统的稳定运行。
4. 兼容性与灵活性：
• TDI与多种设备和软件兼容，包括M系列显示器（如3500/40M和3500/42M）以及其他Bently Nevada的产品和解决方案。
• 提供了USB-B前面板、10Base-T或100Base-TX以太网自适应功能、100Base-FX光纤以太网接口以及机架复位按钮等特性，增强了其灵活性和易用性。

三、应用场景

• TDI模块通常用于工业环境中，特别是在振动监测和机械健康监测系统中。它可以用于检测旋转机械设备（如发电机、泵和风机）的振动水平，以评估其运行状态和健康状况。
• 通过实时监控和瞬态数据记录功能，TDI能够帮助用户及时发现潜在故障并采取维护措施，以防止设备损坏。

The Bently Nevada 3500/22-01-01-00 data interface module, also known as the transient data interface (TDI), is a key component in the Bently Nevada 3500 monitoring system. The following is a detailed analysis of the module:

I. Product Overview

Model: 3500/22-01-01-00

Manufacturer: Bently Nevada

Function: Serves as a bridge between the 3500 monitoring system and compatible software to enable data transmission and collection.

II. Main Functions and Features

Data Collection and Transmission:

TDI combines the functionality of the 3500/20 Rack Interface Module (RIM) with the data collection capabilities of a communications processor such as TDXnet to continuously collect steady-state and transient waveform data.

These data are transmitted to host software such as System 1 Condition Monitoring and Diagnostics Software and 3500 System Configuration Software via an Ethernet link to enable real-time data monitoring.

Static and dynamic data collection:

TDI has traditional static data collection capabilities, while also capturing dynamic and high-resolution transient data through the use of an optional channel enable disk.

This allows users to gain a more complete understanding of the equipment's operating conditions, including behavior during transient events such as startup, shutdown, or load changes.

System architecture simplification:

TDI integrates the communication processor function within the 3500 rack, simplifying the system architecture and reducing costs.

Each 3500 rack requires a TDI or RIM, and it always occupies slot 1 of the rack (near the power supply), ensuring reliable data transmission and stable system operation.

Compatibility and flexibility:

TDI is compatible with a variety of devices and software, including M-series displays (such as 3500/40M and 3500/42M) and other Bently Nevada products and solutions.

Features such as USB-B front panel, 10Base-T or 100Base-TX Ethernet auto-sensing function, 100Base-FX fiber Ethernet interface, and rack reset button are provided to enhance its flexibility and ease of use.

3. Application Scenarios

TDI modules are often used in industrial environments, especially in vibration monitoring and mechanical health monitoring systems. It can be used to detect the vibration level of rotating mechanical equipment (such as generators, pumps and fans) to assess their operating status and health.

Through real-time monitoring and transient data recording functions, TDI can help users detect potential faults in a timely manner and take maintenance measures to prevent equipment damage.
